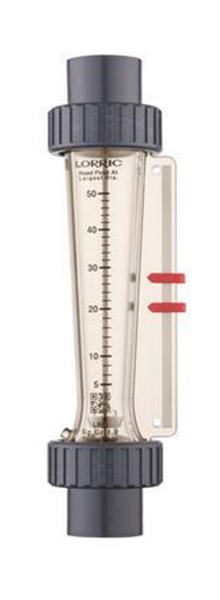

F301/301A Series – 270mm Patented Dual-Indicator Flow Meter

DESCRIPTION:
Easy to install, More stable flow field, Patented dual-indicator, Laser engraved scales, Customizable specific gravity scales

• New body design: Decreases the vibration when working which stabilizes flow distribution.
• New indicator design: Easily adjustable and positionable.
• Thickened threads for caps: Caps are easy to be locked even under bad concentricity.
• Models with and without guide rods are able to share the same adaptors.
• Applicable Fluid: Liquid (F301) , Gas (F301A)
• Adaptor Size: 3/4″, 1″
• Adaptor Material: Welding Type, Male Thread, Female Thread, Butt-fusion Adaptor *** BSPT is standard thread type. NPT is available for custom order
• Flow direction: From the bottom up
• The design is the smallest and the most space-saving in the same flow of the nozzle industry.
• Patented dual-indicator design for easy and clear flow range management.
• Laser engraved degree scales provide better readability and longer life.
• Available in customizable units and specific gravity (SG).
• Each batch of flow meters will be calibrated before delivery for our best precision guarantee.
• Hastelloy float is available for specific high PH liquid usage.
• Perpendicular joint is available for space saving installation
• Operating Conditions
  1. Full Scale Accuracy: ±5%
  2. Working pressure: 5.0kg/cm²
